Product Information

Product description

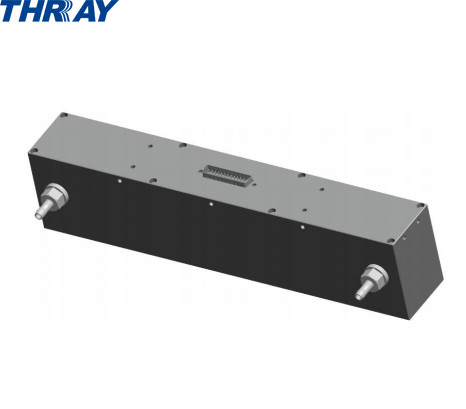

THRAYLINE 250x10 405b light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, THRAYLINE 250x10405b light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.arphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 30MM height, the radiation energy can reach 4965mW/cm2(365nm, EIT energy meter) .

3 In addition to the combined control of THRAYPOWER1A/100-122A control box + PLC, the multi-control mode 1 can also be designed according to different requirements of customers to make the equipment more convenient to use.

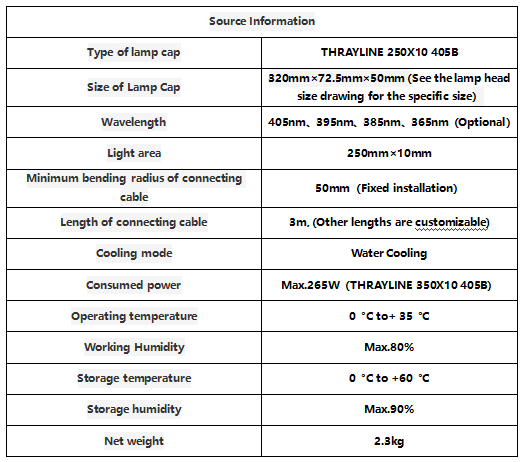

Technical parameter
